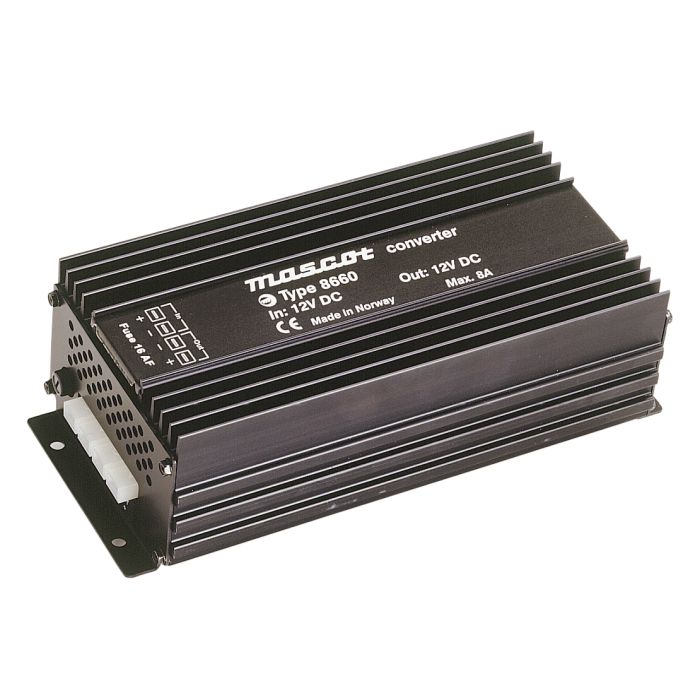

Mascot 8660 100W 12V/12V Switch mode DC/DC converter with electrical separation, unregulated output

In stock
PDL Code
PDL18660121200
£168.78 £140.65

A Switch mode DC/DC converter with an unregulated output, the input electrically separated from the output and Maximum power of 100W with the input protected against reverse Polarity and the output with overvoltage, short circuit and thermal protection. The converter is CE and E marked.
Product Specification
Model 8660
Type Switch Mode
Manufacturer Mascot
Product Code PDL18660121200
MPN 8660121200
Maximum Power 100W
Input Voltage 10-16 VDC
Continuous Load Current 8A
Output Voltage 12V DC
Regulated Output Unregulated
Electrical Separation Yes
Input Terminals 6.3mm Push on
Output Terminals 6.3mm Push on
Weight 1Kg
CE & E Marked CE and E Marked
Datasheet https://mascot.no/media/1215/8660-tech-spec.pdf
Declaration of Conformity https://mascot.no/media/1005/8660-doc.pdf
