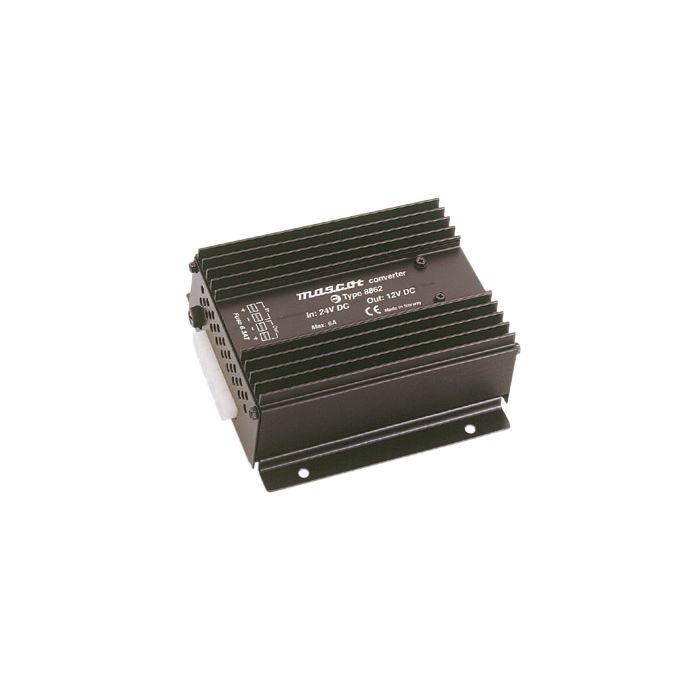

Mascot 8862 81W 12V/24V Switch mode DC/DC converter with electrical separation and Regulated output
Out of stock
PDL Code
PDL18862122400
£113.24
£94.37
A Switch mode DC/DC converter with a regulated output, the input electrically separated from the output and Maximum power of 81W with protection including reverse Voltage, overvoltage, short circuit and thermal protection. The converter switches off at voltages over or under the specified range. The converter is CE and E marked.
| Model | 8862 |
|---|---|
| Type | Switch Mode |
| Manufacturer | Mascot |
| Product Code | PDL18862122400 |
| MPN | 8862122400 |
| Maximum Power | 81W |
| Input Voltage | 10-16 VDC |
| Continuous Load Current | 1.7A |
| Output Voltage | 24V DC |
| Regulated Output | Regulated |
| Electrical Separation | Yes |
| Input Terminals | 6.3mm Push on |
| Output Terminals | 6.3mm Push on |
| Weight | 600g |
| CE & E Marked | CE and E Marked |
| Datasheet | https://mascot.no/media/1219/8862-tech-spec.pdf |
| Declaration of Conformity | https://mascot.no/media/1021/8862-doc.pdf |
