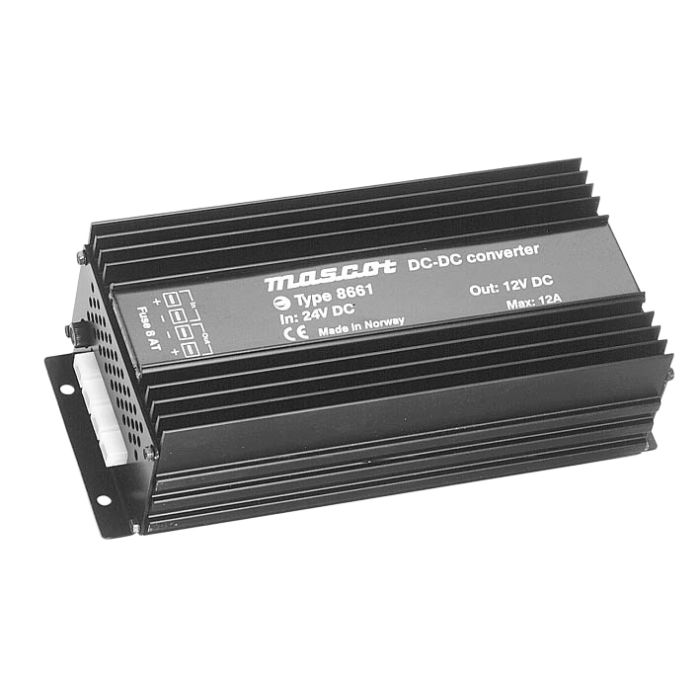

Mascot 8661 160W 24V/12V Switch mode DC/DC converter with electrical separation, Unregulated output

In stock
PDL Code
PDL18661241200
£153.53 £127.94

Ordering 5+ units?Volume discounts available.

A Switch mode DC/DC converter with an unregulated output, the input electrically separated from the output and Maximum power of 160W with the input protected against reverse Polarity with an 8 A fuse and the output with overvoltage, short circuit and thermal protection. The converter is E marked to the vehicle directive ref. (95/54/EC).
Product Specification
Model 8661
Type Switch Mode
Manufacturer Mascot
Product Code PDL18661241200
MPN 8661241200
Maximum Power 160W
Input Voltage 20-32V DC
Continuous Load Current 12A
Output Voltage 12V DC
Regulated Output Unregulated
Electrical Separation Yes
Input Terminals 6.3mm Push on
Output Terminals 6.3mm Push on
Weight 1Kg
CE & E Marked E Marked ( 95/54/EC)
