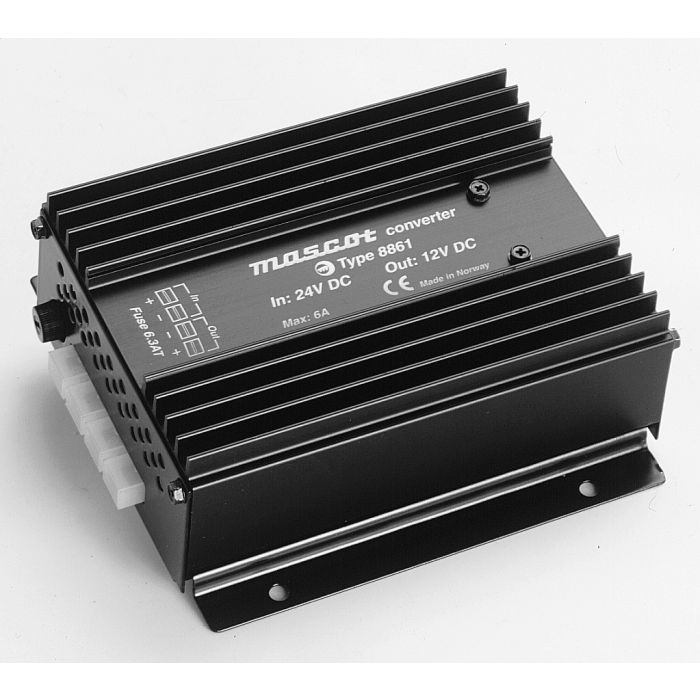

Mascot 8861 81W 24V/12V Switch mode DC/DC converter with electrical separation, unregulated output
Out of stock
PDL Code
PDL18861241200
£119.00
£99.17
**This product is now end of life and is only available whilst stocks last**
Pulsar recommend PDL18862241200 as a suitable alternative.
Please contact us if you require further assistance.
A Switch mode DC/DC converter with an unregulated output, the input electrically separated from the output and Maximum power of 81W with protection including reverse Voltage , overvoltage, short circuit and thermal protection. The converter is E marked to vehicle directive ref. (95/54/EC)
| Model | 8861 |
|---|---|
| Type | Switch Mode |
| Manufacturer | Mascot |
| Product Code | PDL18861241200 |
| MPN | 8861241200 |
| Maximum Power | 81W |
| Input Voltage | 20-32V DC |
| Continuous Load Current | 6A |
| Output Voltage | 12V DC |
| Regulated Output | Unregulated |
| Electrical Separation | Yes |
| Input Terminals | 6.3mm Push on |
| Output Terminals | 6.3mm Push on |
| Weight | 600g |
| CE & E Marked | E Marked ( 95/54/EC) |
| Datasheet | https://mascot.no/media/1229/8861-tech-spec.pdf |
| Declaration of Conformity | https://mascot.no/media/1031/8861-doc.pdf |
