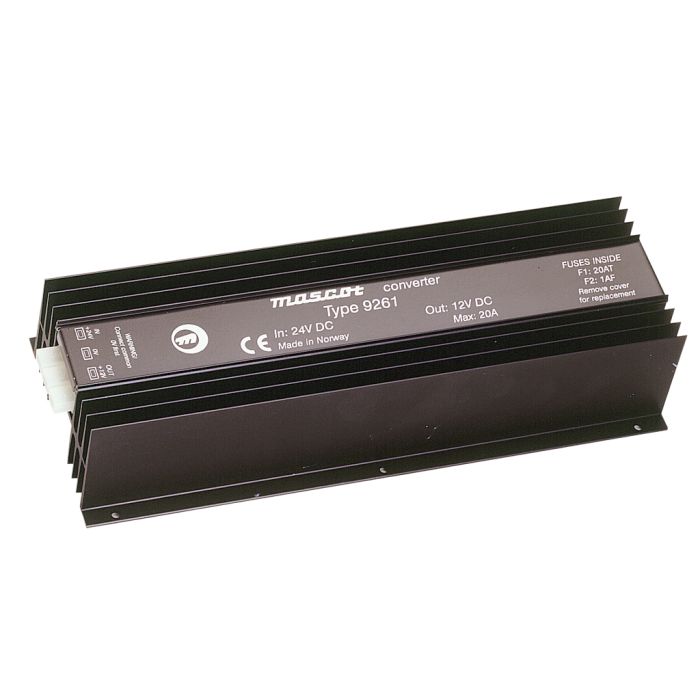

Mascot 9261 110W 24V/13.5V Linear DC/DC converter with regulated output
In stock
PDL Code
PDL19261241200
£120.05
£100.04
This product has now been discontinued and is only available whilst stock lasts. Pulsar recommend PDL19970241200 /a> as a suitable alternative. Please contact us if you require further assistance.
A Linear DC/DC converter with a regulated output and Maximum power of 110W with the input protected against reverse Polarity with a 20A fuse and the output with overvoltage and thermal protection. The converter is E marked to the vehicle directive ref. (95/54/EC).
| Model | 9261 |
|---|---|
| Type | Linear |
| Manufacturer | Mascot |
| Product Code | PDL19261241200 |
| MPN | 9261241200 |
| Maximum Power | 110W |
| Input Voltage | 20-32V DC |
| Continuous Load Current | 8A |
| Output Voltage | 13.5V DC |
| Regulated Output | Regulated |
| Electrical Separation | No |
| Input Terminals | 6.3mm Push on |
| Output Terminals | 6.3mm Push on |
| Weight | 1.3Kg |
| CE & E Marked | E Marked ( 95/54/EC) |
| Datasheet | https://mascot.no/media/1224/9261-tech-spec.pdf |
| Declaration of Conformity | https://mascot.no/media/1044/9261-doc.pdf |
