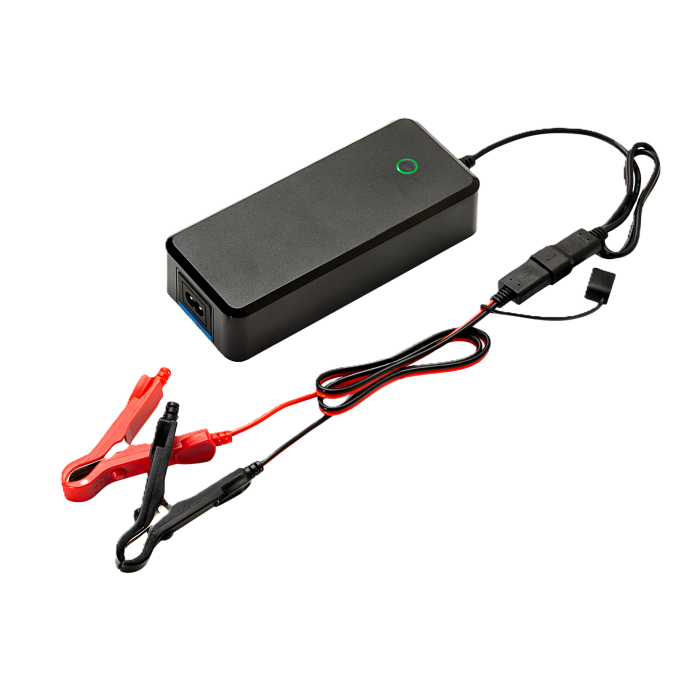

4340 CHARGER 100-240V 48V 1.35A LEAD ACID with Battery Clips
In stock
PDL Code
PDL14340480000
£102.06
£85.05
Mascot 4340 CHARGER 100-240V 48V 1.34A LEAD ACID with Battery Clips
3-step charge control with current detection and timer
Universal input voltage 90-264 VAC
Configurable (CBC toolkit)
2-pin IEC 60320 C8 or mains cable
Temp. compensation of charge voltage
Wake up and low current start-up of deeply discharged batteries
Safety indication and protection: against reverse polarity, short circuit, charging battery packs with the wrong number of cells and safety timer run-out
Active power factor correction
| Model | 4340LA |
|---|---|
| Manufacturer | Mascot |
| Product Code | PDL14340480000 |
| MPN | 4340480000 |
| Chemistry | Lead Acid |
| Case Style | Desktop |
| Battery Voltage | 48V |
| Voltage | 48 |
| Cells/Charge Current | 48V/1.35A |
| Input Voltage | 90-264 VAC 47-63Hz |
| Charge Current | 1.35A |
| Maximum Power | 80W |
| Medical Approval Number | EN60601-1 ed 3.2 |
| UL Approval Number | UL60601-1 |
| Input Connection | 2 pin IEC Socket |
| Weight | 460g |
| Datasheet | https://5720226.fs1.hubspotusercontent-na1.net/hubfs/5720226/Datasheets/tech-spec-4340-la.pdf |
| Certificate of Conformity | https://5720226.fs1.hubspotusercontent-na1.net/hubfs/5720226/Datasheets/4040%20LI_techspec.pdf |
