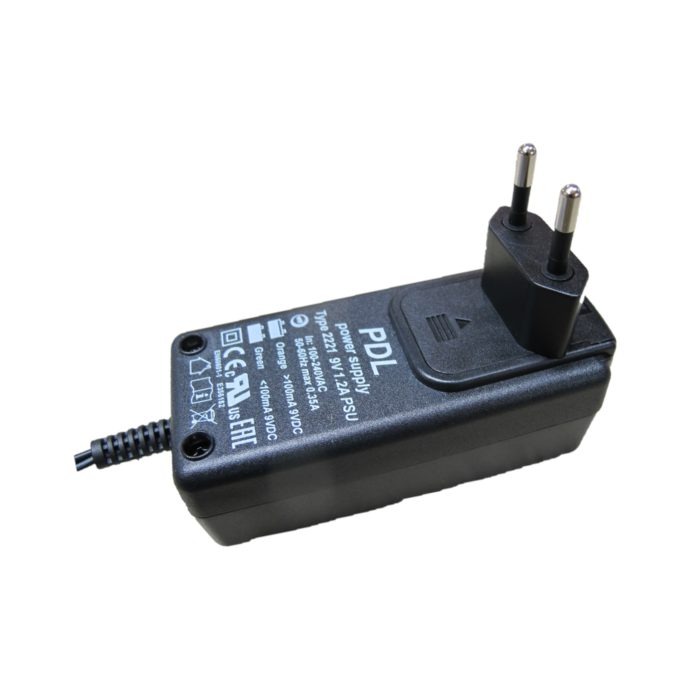

Mascot 2221 9V DC, 10.8W Switch mode power supply designed to charge TOPCON equipment

PDL Code
PDL12221000040
£48.71 £40.59


A 10.8W AC/DC Switch mode power supply with interchangeable AC Plug heads and a 100-240V AC/50-60Hz input voltage designed to charge Topcon equipment with the output connector to suit the TOPCON products.

Supplied with EU AC plug head as standard. All other plug heads or leads must be ordered separately.

Please contact us to order your free sample or discuss our volume discounts. Please also email for international shipping or for a quote in Euros.



Mascot 2221 9V DC, 10.8W Switch mode power supply designed to charge TOPCON equipment with LED indications to confirm when the battery is fully charged. Supplied with the EU AC Plug head as standard and a 100-240V AC/50-60Hz input voltage with the output connector to suit the TOPCON Lasers RL-SV2S and RL-H5A



History

In 2014 Pulsar Developments collaborated with TOPCON Positioning Europe to develop a unique Mascot power supply which TOPCON distributed as an alternative to their standard power supply

The PDL12221000040 is specifically designed to charge the TOPCON RL-SV2S and RL-H5A laser levels and has a number of intuitive features, superior to the current AD-17 charger





Optimal Battery Charging

The LED display with charge indicator is designed to ensure the laser level is charged to maximum battery capacity (Up to 65 hours with the rechargeble battery.)

  1. The Orange LED indicates the power supply is connected to mains electricity, is working and the battery is charging
  2. The Green LED indicates the charge current is less than 100mA, signaling that the battery is fully charged

Optimal charging of the battery guarantees the battery is fully charged and ensures maximum operational time of the laser equipment on site.



Flexibility & Interchangeability - One Product that is adaptable for use worldwide

The power supply has interchageable AC plug heads to provide a flexible plug in solution  and a socket for a 2-Pin IEC mains lead of your choice. Supplied with EU AC plug head as standard. All other plug heads or leads must be ordered separately.

This allows the product to be used as either a desk top or plug-in and used in a number of regions, thus increasing flexibility and minimising inventory.



Quality, Durability & Reliability
Pulsar Developments customise and modify battery chargers and power supplies using only quality products and all modified and off-the-shelf units are engineered to last as long as the battery or equipment it is powering, while meeting worldwide safety standards, UL requirements and medical certifications.

The power supply is enclosed in a rugged , impact resitant plastic case for added protection against the day to day use on site again minimising equipment downtime.

The power supply meets the latest EMC and safety specifications and is UL approved.

Product Specification
Model 2221000040
Type Switch Mode
Manufacturer Mascot
Product Code PDL12221000040
MPN 2221000040
Case Style Plug-in
Regulated Output Regulated
Output Current 1.2A
Maximum Power 10.8W
Input Voltage 100-240V AC/50-60Hz
Input Connection AC Plug head / 2 pin IEC Socket (Supplied with EU AC Plug head as standard)
Weight 115g
