Mascot 3540LiFe 4 Cell battery charger
In stock
PDL Code
PDL13540140000
£332.30
£276.92

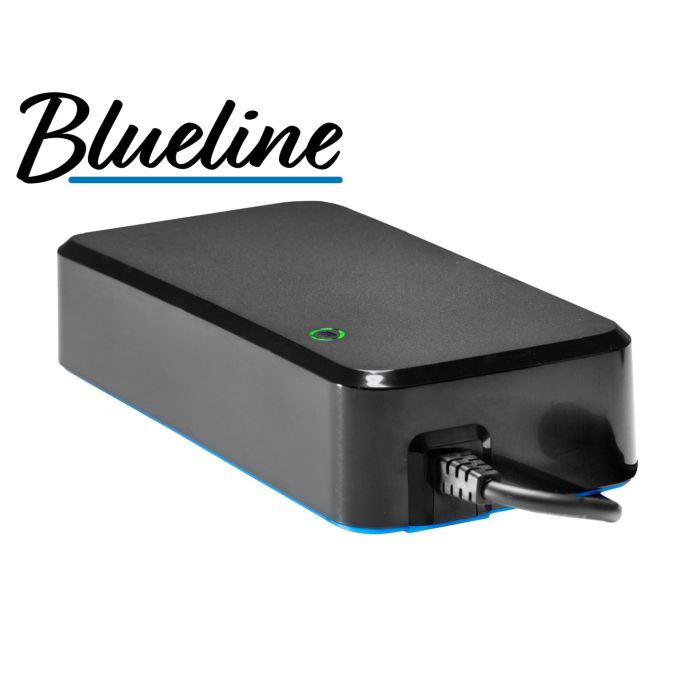

Mascot Blueline 3540 LiFePO4 4 Cell/20A 3-Step Battery Charger with current detection
3-step charge control with current detection
Input voltage 198-264 VAC. 115 VAC versions available.
Fixed mains cable, 2-pin IEC 60320 available
Output terminal: cord w. open ends, XLR output plug for wheelchairs and scooters available
Wake up and low current start-up of deeply discharged batteries
Safety indication and protection: against reverse polarity, short circuit, charging battery packs with the wrong number of cells and safety timer run-out
| Model | 3540LiFe |
|---|---|
| Manufacturer | Mascot |
| Product Code | PDL13540140000 |
| MPN | 3540140000 |
| Chemistry | LiFePO4 |
| Case Style | Desktop |
| Number of cells | 4 |
| Cells/Charge Current | 4 Cell/20A |
| Input Voltage | 198-264V AC 47-50Hz |
| Charge Current | 20A |
| Charge Voltage | 14.6 |
| Medical Approval Number | EN60601-1 ed3.1 |
| UL Approval Number | UL60601 |
| Input Connection | Fixed EURO plug mains lead |
| Weight | 1400g |
| Datasheet | https://www.mascot.no/media/2169/3540lifepo4.pdf |
| Certificate of Conformity | https://www.mascot.no/media/2172/doc-2020_06.pdf |
